VOX SMALL+

VOX Small+, standard version

Outside dimensions: 120 (W) x 100 (d) x 230 (h)
Inside dimensions: 108 (W) x 94 (d) x 211 (h)
Weight: 475 kg
Sound insulation class B: 29 dB
Choice of door swing direction: Right or Left
Door handle in colour of metal outside panels
Outside panels and door frames in metallic RAL colour
Inside fully upholstered with Camira Fabrics Sonus
Inside metal parts in colour ZW – Black RAL 9005
Entrance matting, colour: Dark Anthracite
Power connection via side (bottom left) and top
Switch for ventilation and dimmable lighting, colour: matt black
Electric unit 1x 230V, colour: matt black
Levelling feet and castors for exact positioning after assembly
Doors and rear fitted with 8-10 mm safety glass
Dimmable LED lighting, 1x ceiling fixture W: 27 cm x D: 27 cm, colour: matt black
Dimmable mechanical ventilation system, equipped with 5 fans
Air circulation: 270 CFM / 127 LS / 213 m3 HR
Coat hook 30 x 70 mm in colour ZW – Black RAL 9005 (1 piece)

Standard version does not include additional options: electricity, tabletops, finishing, extras and stool.

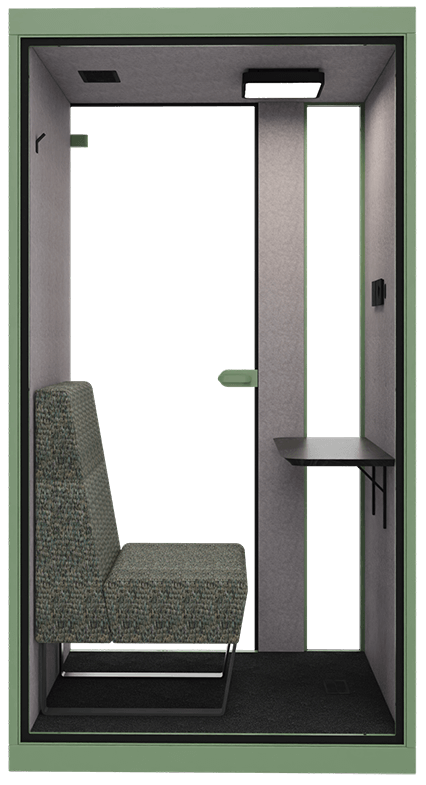

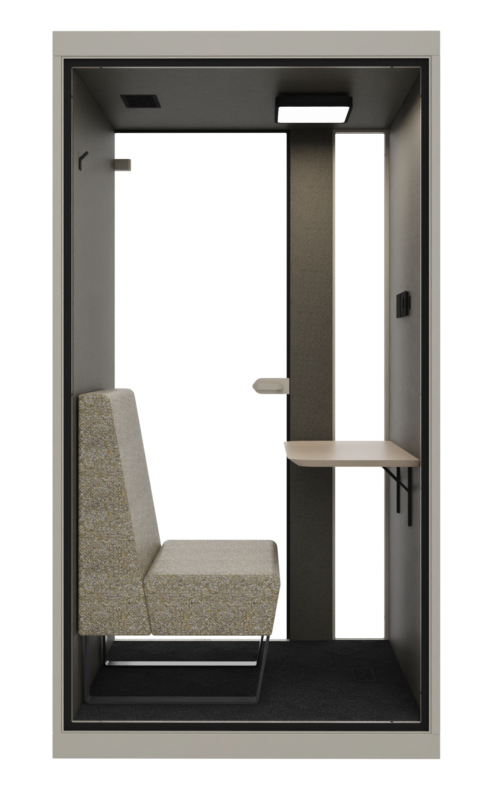

NB: Images shown include additional options

Metal RAL colours

Choose the colour of your outside panels, door frames and door handle (components have the same finish, colour combinations are not possible)

Electricity

EP11 1x USB-A and 1x USB-C, colour: matt black (placement next to a standard power outlet)

EP12 1x Data Line (Cat 6), colour: matt black (placement next to a standard power outlet)

EP13 1x 230V at height of 60 cm above ground, colour: matt black

EP14 Wireless charger in tabletop for mobile phone (only suitable for tabletop with fixed height)

EP16 Sensor dimmable automatic ventilation / system lighting (adjustable: 10s / 30s / 90s / 3m / 7m / 15m)

EP17 Electrical unit 1x 230V, above table top, colour: matt black

EP11

1x USB-A and 1x USB-C, colour: matt black (placement next to a standard power outlet)

EP12

1x Data Line (Cat 6), colour: matt black (placement next to a standard power outlet)

EP13

1x 230V at height of 60 cm above ground, colour: matt black

EP14

Wireless charger in tabletop for mobile phone (only suitable for tabletop with fixed height)

EP16

Sensor dimmable automatic ventilation / system lighting (adjustable: 10s / 30s / 90s / 3m / 7m / 15m)

EP17

Electrical unit 1x 230V, above table top, colour: matt black

Tabletop

Melamine wood grain structure

Choose your tabletop colour

HPL Zero

Choose your tabletop colour (fingerprint-free, antibacterial, less scratch-sensitive, easy to clean)

EP01

Tabletop, fixed height 75 cm, W: 80 cm x D: 50 cm, black metal wall mount 25mm chipboard with melamine coating, 2mm top edge

EP02

Tabletop, fixed height 75 cm, W: 83 cm x D: 50 cm, black metal wall mount 30mm MDF with HPL Zero scratch-resistant coating, faceted top edge

EP03

Tabletop, fixed height 110 cm, W: 83 cm x D: 50 cm, black metal wall mount 25mm chipboard with melamine coating, 2mm top edge

EP04

Tabletop, fixed height 110 cm, W: 83 cm x D: 50 cm, black metal wall mount 30mm MDF with HPL Zero scratch-resistant coating, faceted top edge

EP05

Tabletop, electrically adjustable 65-110 cm, W: 83 cm x D: 50 cm, Electric duo rail mechanism integrated in rear panel, black metal mount 25mm chipboard with melamine coating, 2mm top edge

EP06

Tabletop, electrically adjustable 65-110 cm, W: 83 cm x D: 50 cm, Electric duo rail mechanism integrated in rear panel, black metal mount 30mm MDF with HPL Zero scratch-resistant coating, faceted top edge

Finishing

EP21

Exterior side panels with intermediate segment in 8mm chipboard with melamine wood grain structure

EP22

Other RAL colours for metal outside panels, door frames and door handle

EP23

Textured Pulver colours for metal outside panels, door frames and door handle

Extras

EP31

Bracket for 28-32 inch flat-screen including 1x 230V connection point behind the bracket (this option is not possible with an electrically adjustable tabletop)

EP32

Door equipped with cylinder lock and key

EP33

Warning system (sound/light) (connection must be carried out by a qualified installer)

EP34

Sprinkler system built into ceiling for connection to existing sprinkler system in building (connection must be carried out by a qualified installer)

Stool

EP41

Height-adjustable swivel stool with footres round 34cm seat cushion, thickness 10 cm Fixed in the floor, cannot be moved Frame colour: ZW – Black(Fabric groups, click here)

Bench

EP42

Bench, fully upholstered, on metal sled frame in the color BL – Black Dimensions: W: 60 cm x D: 65 cm (Fabric groups, click here)
